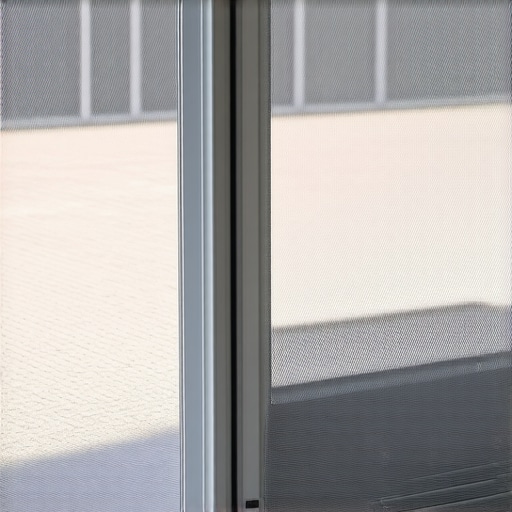

The Anatomy of Friction: Why Your Screen Door Folds Like an Accordion
In twenty-five years of glazing and fenestration work, I have seen every imaginable failure of the building envelope. From high-rise curtain walls to residential sliders, the most frequent complaint I hear from homeowners involves the humble sliding screen door. They call it a minor annoyance, but as a master glazier, I know that a bunching, jumping, or sticking screen is a symptom of mechanical misalignment or environmental stress that can eventually lead to a full window repair or the need to replace windows entirely. When that screen starts to ripple and bind at the bottom track, it is not just a nuisance; it is a failure of the tension system designed to keep that mesh taut. Most ‘caulk-and-walk’ installers will tell you to just spray some silicone on it and walk away, but that is a temporary band-aid for a structural problem.
A homeowner called me in a panic because their new sliding doors were ‘sweating’ and the screens were impossible to move. I walked in with my hygrometer and showed them the humidity was 60 percent. It was not the windows; it was their lifestyle, specifically how they were managing the indoor-to-outdoor transition. The moisture was causing the wood-clad stiles to swell slightly, which in turn compressed the screen track. This is the reality of residential glazing: everything is connected. When you understand the rough opening tolerances and how a house settles, you realize why that screen cloth is bunching up. It is often a result of the frame being pulled out of square, even by as little as an eighth of an inch, which changes the tension on the rollers and the spline.
“Installation is just as critical as the window performance itself. A high-performance window installed poorly will fail.” – AAMA Installation Masters Guide
The Physics of Screen Tension and Thermal Expansion
To understand why a screen bunches, we have to look at the material science of the screen cloth and the spline. Most modern screens use a fiberglass mesh coated in PVC. This material is chosen for its durability and resistance to UV degradation, but it is not immune to the laws of physics. In hotter climates, specifically in the South where the Solar Heat Gain Coefficient (SHGC) is a critical metric for any glazing unit, the heat buildup on a dark-colored screen can be significant. This radiant heat causes the mesh to expand. If the tension was not set correctly during the initial fabrication, that expansion has nowhere to go but down, resulting in a bunch at the base of the door.
The screen is held into the frame by a component called the spline. This is a serrated vinyl or rubber cord that is rolled into a groove in the aluminum frame. If a window cleaner has used harsh ammonia-based chemicals near that spline, it can cause the vinyl to harden and lose its grip. Once the spline slips, the screen cloth loses its ‘drum-tight’ quality. This is when the bunching begins. As you slide the door, the loose mesh catches on the sill track, creating a snowball effect of friction. This is why professional window repair involves more than just replacing the mesh; it requires checking the integrity of the frame and the diameter of the spline used.
The Role of the Roller Housing and Rough Opening
The screen door does not just sit in a track; it floats on a system of rollers, usually located at the top and bottom of the frame. These rollers are housed in a spring-loaded assembly. If the rough opening was not perfectly level, or if the installer did not use a proper shim to level the sill, one side of the door will sit lower than the other. This creates an uneven load on the screen cloth. When you push the door, the leading edge moves, but the trailing edge lags because of the friction, causing the mesh to buckle at the bottom. This is common in regions with high humidity where the subfloor might expand, pushing the track upward and narrowing the space for the screen to operate.
“Proper flashing and integration of the window unit into the water-resistive barrier is essential for long-term durability of the fenestration assembly.” – ASTM E2112 Standard Practice
I often see issues where the weep holes in the sliding door track are clogged with dirt and debris. When water cannot escape the track, it sits against the bottom of the screen frame. For aluminum screens, this leads to oxidation; for wood-clad screens, it leads to rot. This moisture also attracts more grit, which acts like sandpaper on the nylon or steel rollers. When a roller stops spinning and starts sliding, the force required to move the door increases, and that force is transferred directly into the screen mesh, causing it to distort and bunch.
The Technical Fix: Beyond the Surface
If you are looking to fix this without having to replace windows, the first step is a surgical cleaning of the tracks. Do not reach for the WD-40. Petroleum-based lubricants attract more dirt and will eventually create a thick paste that will seize the rollers entirely. Instead, use a dry PTFE lubricant after a thorough cleaning with a dedicated window cleaner that is safe for vinyl and aluminum. Next, inspect the tension springs. Most screens have an adjustment screw on the side of the frame. By turning these screws, you can raise or lower the roller housing to compensate for a slightly out-of-square opening. This can often pull the screen mesh taut and eliminate the bunching.
However, if the mesh itself has been stretched beyond its elastic limit, no amount of adjustment will save it. You will need to re-screen the frame. When doing this, a master glazier uses a specific ‘draw’ technique, pulling the mesh tight from the center out to the corners. We also select the spline diameter with precision. A spline that is too thin will slip; a spline that is too thick will distort the aluminum frame, causing it to bow inward, which ironically leads to more bunching. It is a delicate balance of tension and geometry.
When to Repair and When to Replace
There comes a point where a screen door failure is a harbinger of larger issues. If you find that you are constantly adjusting the rollers or that the screen continues to bunch despite being re-screened, the issue is likely a warped door frame or a failing sill. In many older homes, the header above the sliding door may have sagged, putting pressure on the entire assembly. In these cases, a simple window repair is insufficient. You may need to look at high-performance fiberglass replacement windows. Fiberglass is significantly more stable than vinyl or wood, with a coefficient of thermal expansion similar to glass itself. This means the frame moves with the glass, maintaining the integrity of the tracks and the tension of the screen regardless of the temperature outside.
