Diagnosing Air Infiltration with Precision
I once walked into a home in Milwaukee where the homeowner was convinced their two-year-old double-hung units were defective. They called me in a panic because their new windows were sweating and the curtains were dancing in a January gale. I didn’t reach for a thermal camera first; I reached for my hygrometer and a stick of blue carpenter’s chalk. I showed them the interior humidity was spiked at 55 percent due to a poorly vented crawlspace, but the draft? That was a mechanical failure of the sash alignment. It wasn’t the glass; it was the interface. Many homeowners think they need to replace windows the moment they feel a chill, but often, a surgical window repair is all that stands between a drafty room and a high-performance thermal envelope.
“Air leakage is a primary contributor to building envelope failure and occupant discomfort. Identification of leakage paths through the window assembly is critical before determining a remediation strategy.” ASTM E2112 Standard Practice
The Physics of the Sash Interface
To understand why air bypasses a window, you must understand the operable components. A window is not a static object; it is a machine. The sash moves within a track, and it relies on compression seals and brush weatherstripping to create an airtight barrier. In cold climates like Chicago or Minneapolis, the U-Factor is the metric that matters most. We are fighting heat loss via conduction, but convection (air movement) is the silent killer of efficiency. If the rough opening was not perfectly square, or if the shim placement was aggressive, the frame can bow. This bowing creates a microscopic gap where the glazing bead meets the frame, or more commonly, at the meeting rail where the two sashes lock.
Executing the Chalk Trick

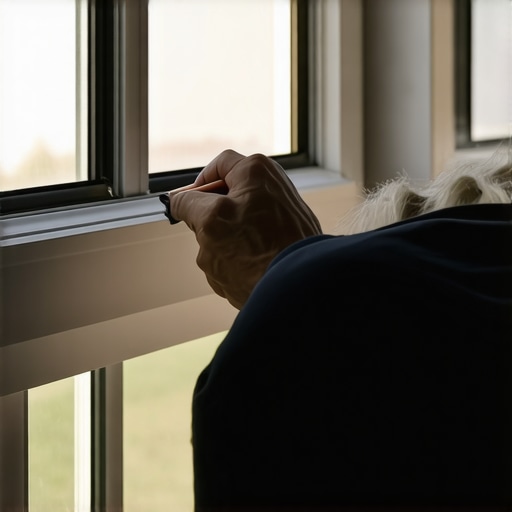

The chalk trick is a master glazier’s secret for visualizing the invisible. First, you must ensure the tracks are pristine. A professional window cleaner knows that grit in the tracks prevents the sash from seating fully into the sill pan. Once clean, take a piece of sidewalk chalk or tailor’s chalk and run a heavy bead along the entire perimeter of the weatherstripping on the operable sash. Close the window and lock it firmly. The locking action is vital because it pulls the meeting rails together, compressing the bulb seals. Now, open the window and inspect the frame. You are looking for a transfer of color. A solid line of chalk on the frame indicates a perfect seal. A break in that line? That is your leak. That is where the 15-degree air is bypasses your Low-E coating and entering the living space.
Analyzing the Transfer Pattern
If the chalk transfer is missing at the corners, you likely have a ‘smile’ or ‘frown’ in the header or sill. This often happens in vinyl windows that lack internal steel or aluminum reinforcement. Vinyl has a high coefficient of thermal expansion; it moves significantly more than the glass it holds. When the temperature drops, the frame shrinks away from the sash, and if the flashing tape wasn’t applied with enough slack to account for building movement, you get structural stress. If the gap is at the meeting rail, the interlock is not engaging. This is common in older wood windows where the muntin bars have added weight and caused the rail to sag over decades of seasonal humidity cycles.
“The National Fenestration Rating Council (NFRC) provides a rating for Air Leakage (AL), yet even a window with an AL of 0.1 cannot perform if the installation environment has compromised the frame’s squareness.” NFRC Performance Guidelines
Beyond the Chalk: When Repair Isn’t Enough
Sometimes the chalk trick reveals a hard truth: the frame is racked. If I see a diagonal gap that narrows from top to bottom, the house has settled, and the rough opening is no longer a rectangle. In these cases, window repair is a temporary bandage. You are looking at a full-frame replace windows scenario. Unlike a pocket replacement where we slide a new unit into an old frame, a full-frame replacement allows us to inspect the weep hole drainage and install a proper sill pan. In Northern climates, we look for a low U-Factor, typically below 0.27, and we want a warm-edge spacer. The spacer is what separates the two panes of glass. If you use a standard aluminum spacer, the edge of the glass remains cold, causing the very condensation that my Milwaukee homeowner was worried about. We want a structural foam spacer that breaks the thermal bridge.
The Role of Maintenance
I tell my clients that a window is like a car. You wouldn’t expect a car to run forever without an oil change. Every year, you should act as your own window cleaner, removing debris from the tracks and ensuring the weep holes are clear. If water backs up in the track because of a clogged weep hole, it will eventually find its way over the interior leg of the frame and into your floorboards. While you are cleaning, look for cracked glazing beads. These are the strips that hold the glass in the sash. If they are brittle or popping out, they need immediate replacement to maintain the structural integrity of the IGU (Insulated Glass Unit).
Final Technical Considerations
When diagnosing drafts, remember that the Sill Pan is your last line of defense against rot. If the chalk trick shows a leak at the bottom rail, check for any daylight. If you see light, you have a major failure of the weatherstripping. We don’t just ‘caulk it shut.’ We replace the bulb seal with a high-density Santoprene or EPDM material. This ensures that even in sub-zero temperatures, the seal remains flexible enough to maintain contact with the frame. Don’t be fooled by high-pressure sales tactics claiming triple-pane glass is the only solution. If the air is leaking around the frame, five panes of glass won’t save your heating bill. Focus on the seal, use the chalk, and trust the physics of the assembly.
